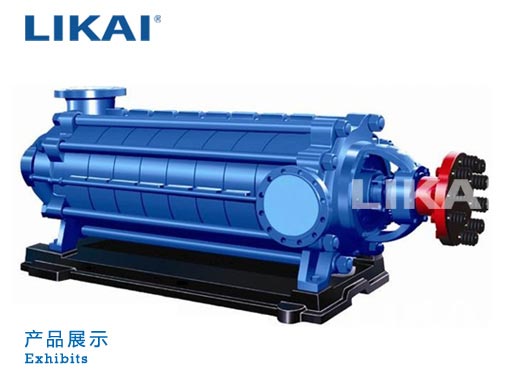

D、DG型泵系臥式、單吸多級、分段式離心泵。具有效率高、性能范圍廣、運行安全平穩、噪音低、壽命長、安裝維修方便等特點。供輸送清水或物理化學性質類似于水的其它液體。也可以通過改變泵過流部件材質、密封形式和增加冷卻系統用于輸送熱水、油類、腐蝕性或含磨粒的介質。
D、DG型泵系臥式、單吸多級、分段式離心泵。具有效率高、性能范圍廣、運行安全平穩、噪音低、壽命長、安裝維修方便等特點。供輸送清水或物理化學性質類似于水的其它液體。也可以通過改變泵過流部件材質、密封形式和增加冷卻系統用于輸送熱水、油類、腐蝕性或含磨粒的介質。
本司產品全部采用計算機設計和優化處理,公司擁有雄厚的技術力量、豐富的生產經驗和完善的檢測手段,從而保證產品質量的穩定可靠。
1、水力模型良好,效率高,性能范圍廣。
2、泵運行平穩,噪音低。
3、軸封采用軟填料密封或機械密封,密封安全可靠、結構簡單,維修方便快捷。
4、軸為全封結構,確保了不與介質接觸,不銹蝕,使用壽命長。
流量:6.3-300m3/h;
揚程:13-650m;
功率:2.2-400KW;
轉速:1450-2950r/min;
口徑:φ50-φ200;
溫度范圍:≤105℃;
工作壓力:≤3.0Mpa。
D(DG) 46 - 50×12
D(DG)– 分段式鍋爐給水離心泵
46 – 設計流量(m3/h)
50 – 單級揚程
12 – 級數
型 號 | 級數 | 流量 | 揚程 | 功率 | 轉速 | |
---|---|---|---|---|---|---|
m³/h | L/S | (mm) | (Kw) | (r/min) | ||
50D8 | 3 | 18 | 5 | 28.5 | 3 | 2950 |
4 | 38 | 4 | ||||
5 | 47.5 | 5.5 | ||||
6 | 57 | 5.5 | ||||
7 | 66.5 | 7.5 | ||||
8 | 76 | 7.5 | ||||
9 | 85.5 | 7.5 | ||||
10 | 95 | 11 | ||||
11 | 104 | 11 | ||||
12 | 114 | 11 | ||||
80D12 | 2 | 32.4 | 9 | 22.7 | 3 | 2950 |
3 | 34.1 | 5.5 | ||||
4 | 45.5 | 7.5 | ||||
5 | 56.8 | 7.5 | ||||
6 | 68.1 | 11 | ||||
7 | 79.5 | 11 | ||||
8 | 90.8 | 15 | ||||
9 | 102.1 | 15 | ||||
10 | 113.5 | 18.5 | ||||
11 | 124.9 | 18.5 | ||||
12 | 136.2 | 18.5 | ||||
80D30 | 2 | 43 | 12 | 60 | 15 | 2950 |
3 | 90 | 18.5 | ||||
4 | 120 | 22 | ||||
5 | 150 | 30 | ||||
6 | 180 | 37 | ||||
7 | 21 | 45 | ||||
8 | 240 | 55 | ||||
9 | 270 | 55 | ||||
10 | 300 | 55 | ||||
100D16 | 2 | 54 | 15 | 32 | 7.5 | 2950 |
3 | 48 | 15 | ||||
4 | 64 | 18.5 | ||||
5 | 80 | 22 | ||||
6 | 96 | 22 | ||||
7 | 112 | 30 | ||||
8 | 128 | 30 | ||||
9 | 144 | 37 | ||||
10 | 160 | 45 | ||||
11 | 176 | 55 | ||||
12 | 132 | 55 | ||||
125D25 | 2 | 108 | 30 | 40 | 18.5 | 2950 |
3 | 60 | 30 | ||||
4 | 80 | 37 | ||||
5 | 100 | 45 | ||||
6 | 120 | 55 | ||||
7 | 140 | 75 | ||||
8 | 160 | 75 | ||||
9 | 180 | 90 | ||||
10 | 200 | 90 |
DG型臥式多級離心泵性能參數表:
型號 | 級數 | 轉速 | 流量 | 揚程 | 功率 | 效率 | 必需汽蝕余量 | |
---|---|---|---|---|---|---|---|---|
rpm | m3/h | m | 軸功率 | 電機功率 | (%) | m | ||
DG6-25 | 3 | 2950 | 3.75 | 76.5 | 2.37 | 4 | 33 | 2 |
6.3 | 75 | 2.86 | 45 | 2 | ||||
7.5 | 73.5 | 3.19 | 47 | 2.5 | ||||
4 | 3.75 | 102 | 3.16 | 5.5 | 33 | 2 | ||
6.3 | 100 | 3.81 | 45 | 2 | ||||
7.5 | 98 | 4.26 | 47 | 2.5 | ||||
5 | 3.75 | 127.5 | 3.95 | 5.5 | 33 | 2 | ||
6.3 | 125 | 4.77 | 45 | 2 | ||||
7.5 | 122.5 | 5.32 | 47 | 2.5 | ||||
6 | 3.75 | 153 | 4.73 | 7.5 | 33 | 2 | ||
6.3 | 150 | 5.72 | 45 | 2 | ||||
7.5 | 147 | 6.39 | 47 | 2.5 | ||||
7 | 3.75 | 178.5 | 5.52 | 7.5 | 33 | 2 | ||
6.3 | 175 | 6.67 | 45 | 2 | ||||
7.5 | 171.5 | 7.45 | 47 | 2.5 | ||||
8 | 3.75 | 204 | 6.31 | 11 | 33 | 2 | ||
6.3 | 200 | 7.63 | 45 | 2 | ||||
7.5 | 196 | 8.52 | 47 | 2.5 | ||||
9 | 3.75 | 229.5 | 7.1 | 11 | 33 | 2 | ||
6.3 | 225 | 8.58 | 45 | 2 | ||||
7.5 | 220.5 | 9.58 | 47 | 2.5 | ||||
10 | 3.75 | 255 | 7.89 | 15 | 33 | 2 | ||
6.3 | 250 | 9.53 | 45 | 2 | ||||
7.5 | 245 | 10.65 | 47 | 2.5 | ||||
11 | 3.75 | 280.5 | 8.68 | 15 | 33 | 2 | ||
6.3 | 275 | 10.5 | 45 | 2 | ||||
7.5 | 269.5 | 11.71 | 47 | 2.5 | ||||
12 | 3.75 | 306 | 9.47 | 15 | 33 | 2 | ||
6.3 | 300 | 11.44 | 45 | 2 | ||||
7.5 | 294 | 12.78 | 47 | 2.5 | ||||
DG12-25 | 3 | 2950 | 7.5 | 84.6 | 3.93 | 5.5 | 44 | 2 |
12.5 | 75 | 4.73 | 54 | 2 | ||||
15 | 69 | 5.32 | 53 | 2.5 | ||||
4 | 7.5 | 112.8 | 5.24 | 7.5 | 44 | 2 | ||
12.5 | 100 | 6.3 | 54 | 2 | ||||
15 | 92 | 7.09 | 53 | 2.5 | ||||
5 | 7.5 | 141 | 6.55 | 11 | 44 | 2 | ||
12.5 | 125 | 7.88 | 54 | 2 | ||||
15 | 115 | 8.89 | 53 | 2.5 | ||||
6 | 7.5 | 169.2 | 7.85 | 15 | 44 | 2 | ||
12.5 | 150 | 9.46 | 54 | 2 | ||||
15 | 138 | 10.64 | 53 | 2.5 | ||||
7 | 7.5 | 197.5 | 9.16 | 15 | 44 | 2 | ||
12.5 | 175 | 11 | 54 | 2 | ||||
15 | 161 | 12.41 | 53 | 2.5 | ||||
8 | 7.5 | 225.6 | 10.41 | 15 | 44 | 2 | ||
12.5 | 200 | 12.61 | 54 | 2 | ||||
15 | 184 | 14.18 | 53 | 2.5 | ||||
9 | 7.5 | 253.8 | 11.78 | 18.5 | 44 | 2 | ||
12.5 | 225 | 14.18 | 54 | 2 | ||||
15 | 207 | 15.95 | 53 | 2.5 | ||||
10 | 7.5 | 282 | 13.09 | 18.5 | 44 | 2 | ||
12.5 | 250 | 15.76 | 54 | 2 | ||||
15 | 230 | 17.73 | 53 | 2.5 | ||||
11 | 7.5 | 310.2 | 14.4 | 22 | 44 | 2 | ||
12.5 | 275 | 17.34 | 54 | 2 | ||||
15 | 253 | 19.5 | 53 | 2.5 | ||||
12 | 7.5 | 338.4 | 15.7 | 22 | 44 | 2 | ||
12.5 | 300 | 18.9 | 54 | 2 | ||||
15 | 276 | 21.3 | 53 | 2.5 | ||||
DG12-50 | 3 | 2950 | 7.5 | 162 | 8.8 | 18.5 | 37.8 | 2 |
12.5 | 150 | 10.6 | 48 | 2 | ||||
15 | 139.5 | 11.9 | 48 | 2.5 | ||||
4 | 7.5 | 216 | 11.7 | 22 | 37.8 | 2 | ||
12.5 | 200 | 14.1 | 48 | 2 | ||||
15 | 186 | 15.9 | 48 | 2.5 | ||||
5 | 7.5 | 270 | 14.6 | 30 | 37.8 | 2 | ||
12.5 | 250 | 17.7 | 48 | 2 | ||||
15 | 232.5 | 19.8 | 48 | 2.5 | ||||
6 | 7.5 | 324 | 17.6 | 30 | 37.8 | 2 | ||
12.5 | 300 | 21.3 | 48 | 2 | ||||
15 | 279 | 23.7 | 48 | 2.5 | ||||
7 | 7.5 | 378 | 20.4 | 37 | 37.8 | 2 | ||
12.5 | 350 | 24.8 | 48 | 2 | ||||
15 | 325.5 | 27.7 | 48 | 2.5 | ||||
8 | 7.5 | 432 | 23.3 | 37 | 37.8 | 2 | ||
12.5 | 400 | 28.4 | 48 | 2 | ||||
15 | 372 | 31.7 | 48 | 2.5 | ||||
9 | 7.5 | 468 | 26.3 | 45 | 37.8 | 2 | ||
12.5 | 450 | 31.9 | 48 | 2 | ||||
15 | 418.5 | 35.7 | 48 | 2.5 | ||||
10 | 7.5 | 540 | 29.2 | 45 | 37.8 | 2 | ||
12.5 | 500 | 35.5 | 48 | 2 | ||||
15 | 465 | 39.6 | 48 | 2.5 | ||||
11 | 7.5 | 594 | 32.1 | 55 | 37.8 | 2 | ||
12.5 | 550 | 39 | 48 | 2 | ||||
15 | 511.5 | 43.5 | 48 | 2.5 | ||||
12 | 7.5 | 648 | 35 | 75 | 37.8 | 2 | ||
12.5 | 600 | 42.6 | 48 | 2 | ||||
15 | 558 | 47.8 | 48 | 2.5 | ||||
DG25-30 | 3 | 2950 | 15 | 102 | 8.33 | 15 | 50 | 2.2 |
25 | 90 | 9.88 | 62 | 2.2 | ||||
30 | 82.5 | 10.7 | 63 | 2.6 | ||||
4 | 15 | 136 | 11.1 | 18.5 | 50 | 2.2 | ||
25 | 120 | 13.1 | 62 | 2.2 | ||||
30 | no | 14.26 | 63 | 2.6 | ||||
5 | 15 | 170 | 13.89 | 22 | 50 | 2.2 | ||
25 | 150 | 16.47 | 62 | 2.2 | ||||
30 | 137.5 | 17.83 | 63 | 2.6 | ||||
6 | 15 | 204 | 16.67 | 30 | 50 | 2.2 | ||
25 | 180 | 19.17 | 62 | 2.2 | ||||
30 | 165 | 21.4 | 63 | 2.6 | ||||
7 | 15 | 238 | 19.44 | 30 | 50 | 2.2 | ||
25 | 210 | 23.1 | 62 | 2.2 | ||||
30 | 192.5 | 24.96 | 63 | 2.6 | ||||
8 | 15 | 272 | 22.22 | 37 | 50 | 2.2 | ||
25 | 240 | 26.4 | 62 | 2.2 | ||||
30 | 220 | 28.53 | 63 | 2.6 | ||||
9 | 15 | 306 | 25 | 37 | 50 | 2.2 | ||
25 | 270 | 29.65 | 62 | 2.2 | ||||
30 | 247.5 | 32.1 | 63 | 2.6 | ||||
10 | 15 | 340 | 27.8 | 45 | 50 | 2.2 | ||
25 | 300 | 32.9 | 62 | 2.2 | ||||
30 | 275 | 35.7 | 63 | 2.6 | ||||
DG25-50 | 3 | 2950 | 15 | 154.5 | 15.78 | 22 | 40 | 2.5 |
25 | 150 | 18.91 | 54 | 2.8 | ||||
30 | 144 | 20.64 | 57 | 3.2 | ||||
4 | 15 | 206 | 21.04 | 30 | 40 | 2.5 | ||
25 | 200 | 25.22 | 54 | 2.8 | ||||
30 | 192 | 27.5 | 57 | 3.2 | ||||
5 | 15 | 257.5 | 26.2 | 37 | 40 | 2.5 | ||
25 | 250 | 31.52 | 54 | 2.8 | ||||
30 | 240 | 34.4 | 57 | 3.2 | ||||
6 | 15 | 309 | 31.56 | 45 | 40 | 2.5 | ||
25 | 300 | 37.82 | 54 | 2.8 | ||||
30 | 288 | 41.28 | 57 | 3.2 | ||||
7 | 15 | 380.5 | 38.86 | 55 | 40 | 2.5 | ||
25 | 350 | 44.1 | 54 | 2.8 | ||||
30 | 336 | 48.16 | 57 | 3.2 | ||||
8 | 15 | 412 | 42 | 75 | 40 | 2.5 | ||
25 | 400 | 50.45 | 54 | 2.8 | ||||
30 | 384 | 55.04 | 57 | 3.2 | ||||
9 | 15 | 463.5 | 47.33 | 75 | 40 | 2.5 | ||
25 | 450 | 56.74 | 54 | 2.8 | ||||
30 | 432 | 61.92 | 57 | 3.2 | ||||
10 | 15 | 515 | 52.59 | 75 | 40 | 2.5 | ||
25 | 500 | 63.04 | 54 | 2.8 | ||||
30 | 480 | 68.8 | 57 | 3.2 | ||||
11 | 15 | 566 | 57.8 | 90 | 40 | 2.5 | ||
25 | 550 | 69.3 | 54 | 2.8 | ||||
30 | 528 | 75.68 | 57 | 3.2 | ||||
12 | 15 | 618 | 63.11 | 110 | 40 | 2.5 | ||
25 | 600 | 75.65 | 54 | 2.8 | ||||
30 | 576 | 82.56 | 57 | 3.2 | ||||
DG46-30 | 3 | 2950 | 30 | 102 | 13.02 | 22 | 64 | 2.4 |
46 | 90 | 16.11 | 70 | 3 | ||||
55 | 81 | 18.84 | 68 | 4.6 | ||||
4 | 30 | 136 | 17.36 | 30 | 64 | 2.4 | ||
46 | 120 | 21.48 | 70 | 3 | ||||
55 | 108 | 23.79 | 68 | 4.6 | ||||
5 | 30 | 170 | 21.7 | 37 | 64 | 2.4 | ||
46 | 150 | 26.85 | 70 | 3 | ||||
55 | 135 | 29.74 | 68 | 4.6 | ||||
6 | 30 | 204 | 26.04 | 37 | 64 | 2.4 | ||
46 | 180 | 32.21 | 70 | 3 | ||||
55 | 162 | 35.68 | 68 | 4.6 | ||||
7 | 30 | 238 | 30.38 | 45 | 64 | 2.4 | ||
46 | 210 | 37.58 | 70 | 3 | ||||
55 | 189 | 41.63 | 68 | 4.6 | ||||
8 | 30 | 274 | 34.72 | 55 | 64 | 2.4 | ||
46 | 240 | 42.95 | 70 | 3 | ||||
55 | 216 | 47.58 | 68 | 4.6 | ||||
9 | 30 | 306 | 39.06 | 55 | 64 | 2.4 | ||
46 | 270 | 48.32 | 70 | 3 | ||||
55 | 243 | 53.53 | 68 | 4.6 | ||||
10 | 30 | 340 | 43.3 | 75 | 64 | 2.4 | ||
46 | 300 | 53.7 | 70 | 3 | ||||
55 | 270 | 59.5 | 68 | 4.6 | ||||
DG46-50 | 3 | 2950 | 30 | 166.5 | 25.19 | 37 | 54 | 2.5 |
46 | 150 | 29.83 | 63 | 2.8 | ||||
55 | 138 | 32.3 | 64 | 3.2 | ||||
4 | 30 | 222 | 33.59 | 45 | 54 | 2.5 | ||
46 | 200 | 39.77 | 63 | 2.8 | ||||
55 | 184 | 43.06 | 64 | 3.2 | ||||
5 | 30 | 277.5 | 41.98 | 55 | 54 | 2.5 | ||
46 | 250 | 49.71 | 63 | 2.8 | ||||
55 | 230 | 53.85 | 64 | 3.2 | ||||
6 | 30 | 333 | 50.38 | 75 | 54 | 2.5 | ||
46 | 300 | 59.65 | 63 | 2.8 | ||||
55 | 276 | 64.59 | 64 | 3.2 | ||||
7 | 30 | 388.5 | 58.78 | 90 | 54 | 2.5 | ||
46 | 350 | 69.6 | 63 | 2.8 | ||||
55 | 322 | 75.36 | 64 | 3.2 | ||||
8 | 30 | 440 | 67.18 | 90 | 54 | 2.5 | ||
46 | 400 | 79.54 | 63 | 2.8 | ||||
55 | 368 | 86.12 | 64 | 3.2 | ||||
9 | 30 | 499.5 | 75.57 | 110 | 54 | 2.5 | ||
46 | 450 | 89.48 | 63 | 2.8 | ||||
55 | 414 | 96.89 | 64 | 3.2 | ||||
10 | 30 | 555 | 83.97 | 132 | 54 | 2.5 | ||
46 | 500 | 99.42 | 63 | 2.8 | ||||
55 | 460 | 107.66 | 64 | 3.2 | ||||
11 | 30 | 610.5 | 92.37 | 132 | 54 | 2.5 | ||
46 | 550 | 109.36 | 63 | 2.8 | ||||
55 | 506 | 118.42 | 64 | 3.2 | ||||
12 | 30 | 666 | 100.8 | 132 | 54 | 2.5 | ||
46 | 600 | 119.3 | 63 | 2.8 | ||||
55 | 552 | 129.2 | 64 | 3.2 | ||||
DG85-45 | 2 | 2950 | 55 | 102 | 24.25 | 37 | 63 | 3.2 |
85 | 90 | 28.94 | 72 | 4.2 | ||||
100 | 78 | 30.33 | 70 | 5.2 | ||||
3 | 55 | 153 | 36.38 | 55 | 63 | 3.2 | ||
85 | 135 | 43.4 | 72 | 4.2 | ||||
100 | 117 | 45.52 | 70 | 5.2 | ||||
4 | 55 | 204 | 48.5 | 75 | 63 | 3.2 | ||
85 | 180 | 57.87 | 72 | 4.2 | ||||
100 | 156 | 60.7 | 70 | 5.2 | ||||
5 | 55 | 255 | 60.63 | 90 | 63 | 3.2 | ||
85 | 225 | 72.34 | 72 | 4.2 | ||||
100 | 195 | 75.86 | 70 | 5.2 | ||||
6 | 55 | 306 | 72.75 | 110 | 63 | 3.2 | ||
85 | 270 | 86.81 | 72 | 4.2 | ||||
100 | 234 | 91.04 | 70 | 5.2 | ||||
7 | 55 | 357 | 84.88 | 132 | 63 | 3.2 | ||
85 | 315 | 101.3 | 72 | 4.2 | ||||
100 | 273 | 106.2 | 70 | 5.2 | ||||
8 | 55 | 408 | 97 | 132 | 63 | 3.2 | ||
85 | 360 | 115.7 | 72 | 4.2 | ||||
100 | 312 | 121.4 | 70 | 5.2 | ||||
9 | 55 | 459 | 109.1 | 160 | 63 | 3.2 | ||
85 | 405 | 130.2 | 72 | 4.2 | ||||
100 | 351 | 136.6 | 70 | 5.2 | ||||
DG85-67 | 3 | 2950 | 55 | 222 | 57.3 | 90 | 58 | 3.3 |
85 | 201 | 68.4 | 68 | 4 | ||||
100 | 183 | 73.3 | 68 | 4.4 | ||||
4 | 55 | 296 | 76.4 | 110 | 58 | 3.3 | ||
85 | 268 | 91.2 | 68 | 4 | ||||
100 | 244 | 97.7 | 68 | 4.4 | ||||
5 | 55 | 370 | 95.6 | 132 | 58 | 3.3 | ||
85 | 335 | 114 | 68 | 4 | ||||
100 | 305 | 122.2 | 68 | 4.4 | ||||
6 | 55 | 444 | 114.7 | 160 | 58 | 3.3 | ||
85 | 402 | 136.9 | 68 | 4 | ||||
100 | 366 | 146.6 | 68 | 4.4 | ||||
7 | 55 | 518 | 133.8 | 200 | 58 | 3.3 | ||
85 | 469 | 159.6 | 68 | 4 | ||||
100 | 427 | 171 | 68 | 4.4 | ||||
8 | 55 | 592 | 152.9 | 220 | 58 | 3.3 | ||
85 | 536 | 182.4 | 68 | 4 | ||||
100 | 488 | 195.4 | 68 | 4.4 | ||||
9 | 55 | 666 | 172 | 250 | 58 | 3.3 | ||
85 | 603 | 205.2 | 68 | 4,0 | ||||
100 | 549 | 219.9 | 68 | 4.4 | ||||
DG155-67 | 3 | 2950 | 100 | 228 | 97 | 132 | 64 | 3.2 |
155 | 201 | 114.7 | 74 | 5 | ||||
185 | 177 | 123.9 | 72 | 6.6 | ||||
4 | 100 | 304 | 129.3 | 200 | 64 | 3.2 | ||
155 | 268 | 152.9 | 74 | 5 | ||||
185 | 236 | 165.1 | 72 | 6.6 | ||||
5 | 100 | 380 | 161.6 | 220 | 64 | 3.2 | ||
155 | 335 | 191.1 | 74 | 5 | ||||
185 | 295 | 206.4 | 72 | 6.6 | ||||
6 | 100 | 456 | 194 | 280 | 64 | 3.2 | ||
155 | 402 | 229.3 | 74 | 5 | ||||
185 | 354 | 247.7 | 72 | 6.6 | ||||
7 | 100 | 532 | 226.3 | 315 | 64 | 3.2 | ||
155 | 469 | 267.5 | 74 | 5 | ||||
185 | 413 | 289 | 72 | 6.6 | ||||
8 | 100 | 608 | 258.6 | 355 | 64 | 3.2 | ||
155 | 536 | 305.7 | 74 | 5 | ||||
185 | 472 | 330.3 | 72 | 6.6 | ||||
9 | 100 | 684 | 290.9 | 400 | 64 | 3.2 | ||
155 | 603 | 344 | 74 | 5 | ||||
185 | 531 | 371.6 | 72 | 6.6 | ||||
DG280-43 | 3 | 1480 | 185 | 141 | 103 | 160 | 69 | 3 |
280 | 129 | 127.7 | 77 | 4.7 | ||||
335 | 114 | 138.7 | 75 | 6 | ||||
4 | 185 | 188 | 137.3 | 200 | 69 | 3 | ||
280 | 172 | 170.3 | 77 | 4.7 | ||||
335 | 152 | 184.9 | 75 | 6 | ||||
5 | 185 | 235 | 171.6 | 250 | 69 | 3 | ||
280 | 215 | 212.9 | 77 | 4.7 | ||||
335 | 190 | 231.1 | 75 | 6 | ||||
6 | 185 | 282 | 205.9 | 315 | 69 | 3 | ||
280 | 258 | 255.5 | 77 | 4.7 | ||||
335 | 228 | 277.3 | 75 | 6 | ||||
7 | 185 | 329 | 240.2 | 355 | 69 | 3 | ||
280 | 301 | 298.1 | 77 | 4.7 | ||||
335 | 266 | 323.6 | 75 | 6 | ||||
8 | 185 | 376 | 274.5 | 400 | 69 | 3 | ||
280 | 344 | 340.7 | 77 | 4.7 | ||||
335 | 304 | 369.8 | 75 | 6 | ||||
9 | 185 | 423 | 308.9 | 450 | 69 | 3 | ||
280 | 387 | 383.2 | 77 | 4.7 | ||||
335 | 342 | 416 | 75 | 6 | ||||
DG25-80 | 5 | 2980 | 15 | 433 | 55 | 75 | 32 | 3.2 |
25 | 400 | 60.5 | 45 | 3.5 | ||||
30 | 390 | 72.1 | 44 | 5 | ||||
6 | 15 | 519.6 | 66 | 90 | 32 | 3.2 | ||
25 | 480 | 72.6 | 45 | 3.5 | ||||
30 | 468 | 86.52 | 44 | 5 | ||||
7 | 15 | 606.2 | 77 | 110 | 32 | 3.2 | ||
25 | 560 | 84.7 | 45 | 3.5 | ||||
30 | 546 | 100.94 | 44 | 5 | ||||
8 | 15 | 692.8 | 88 | 132 | 32 | 3.2 | ||
25 | 640 | 96.8 | 45 | 3.5 | ||||
30 | 624 | 115.36 | 44 | 5 | ||||
9 | 15 | 779.4 | 99 | 132 | 32 | 3.2 | ||
25 | 720 | 108.9 | 45 | 3.5 | ||||
30 | 702 | 129.78 | 44 | 5 | ||||
10 | 15 | 866 | 110 | 160 | 32 | 3.2 | ||
25 | 800 | 121 | 45 | 3.5 | ||||
30 | 780 | 144.2 | 44 | 5 | ||||
11 | 15 | 952.6 | 121 | 200 | 32 | 3.2 | ||
25 | 880 | 133.1 | 45 | 3.5 | ||||
30 | 858 | 158.62 | 44 | 5 | ||||
12 | 15 | 1039.2 | 132 | 200 | 32 | 3.2 | ||
25 | 960 | 145.2 | 45 | 3.5 | ||||
30 | 936 | 173.04 | 44 | 5 | ||||
DG45-80 | 7 | 2950 | 36 | 585.2 | 114.8 | 180 | 50 | 3.9 |
45 | 560 | 124.6 | 55 | 4 | ||||
62 | 477.4 | 143.5 | 56 | 5.5 | ||||
8 | 36 | 668.8 | 131.2 | 200 | 50 | 3.9 | ||
45 | 640 | 142.4 | 55 | 4 | ||||
62 | 545.6 | 164 | 56 | 5.5 | ||||
9 | 36 | 752.4 | 147.6 | 220 | 50 | 3.9 | ||
45 | 720 | 160.2 | 55 | 4 | ||||
62 | 613.8 | 184.5 | 56 | 5.5 | ||||
10 | 36 | 836 | 164 | 250 | 50 | 3.9 | ||
45 | 800 | 178 | 55 | 4 | ||||
62 | 682 | 205 | 56 | 5.5 | ||||
11 | 36 | 919.6 | 180.4 | 280 | 50 | 3.9 | ||
45 | 880 | 195.8 | 55 | 4 | ||||
62 | 750.2 | 225.5 | 56 | 5.5 | ||||
12 | 36 | 10032 | 196.8 | 280 | 50 | 3.9 | ||
45 | 960 | 213.6 | 55 | 4 | ||||
62 | 818.4 | 246 | 56 | 5.5 | ||||
DG85-80 | 7 | 2950 | 54 | 616 | 170.9 | 250 | 53 | 4.5 |
85 | 560 | 199.3 | 65 | 4.4 | ||||
108 | 490 | 218.4 | 66 | 5.3 | ||||
8 | 54 | 704 | 195.3 | 280 | 53 | 4.5 | ||
85 | 640 | 227.8 | 65 | 4.4 | ||||
108 | 560 | 249.6 | 66 | 5.3 | ||||
9 | 54 | 792 | 219.8 | 355 | 53 | 4.5 | ||
85 | 720 | 256.3 | 65 | 4.4 | ||||
108 | 630 | 280.7 | 66 | 5.3 | ||||
10 | 54 | 880 | 244.2 | 355 | 53 | 4.5 | ||
85 | 800 | 284.8 | 65 | 4.4 | ||||
108 | 700 | 311.9 | 66 | 5.3 | ||||
11 | 54 | 968 | 268.6 | 400 | 53 | 4.5 | ||
85 | 880 | 313.2 | 65 | 4.4 | ||||
108 | 770 | 343 | 66 | 5.3 | ||||
12 | 54 | 1056 | 293 | 450 | 53 | 4.5 | ||
85 | 960 | 341.7 | 65 | 4.4 | ||||
108 | 840 | 374.3 | 66 | 5.3 | ||||
DG150-100 | 6 | 2950 | 120 | 630 | 307 | 450 | 67 | 3.4 |
150 | 600 | 353 | 70 | 4.8 | ||||
180 | 540 | 368 | 72 | 5.5 | ||||
7 | 120 | 735 | 359 | 500 | 67 | 3.4 | ||
150 | 700 | 412 | 70 | 4.8 | ||||
180 | 630 | 429 | 72 | 5.5 | ||||
8 | 120 | 840 | 410 | 630 | 67 | 3.4 | ||
150 | 800 | 470 | 70 | 4.8 | ||||
180 | 720 | 491 | 72 | 5.5 | ||||
9 | 120 | 945 | 461 | 630 | 67 | 3.4 | ||
150 | 900 | 518 | 70 | 4.8 | ||||
180 | 810 | 552 | 72 | 5.5 | ||||
10 | 120 | 1050 | 512 | 800 | 67 | 3.4 | ||
150 | 1000 | 588 | 70 | 4.8 | ||||
180 | 900 | 613 | 72 | 5.5 | ||||
DG280-100 | 4 | 2950 | 250 | 420 | 386.4 | 450 | 74 | 5.1 |
280 | 400 | 396 | 77 | 5.6 | ||||
300 | 392 | 416 | 77 | 5.9 | ||||
5 | 250 | 525 | 483 | 630 | 74 | 5.1 | ||
280 | 500 | 495 | 77 | 5.6 | ||||
300 | 490 | 520 | 77 | 5.9 | ||||
6 | 250 | 630 | 579.6 | 710 | 74 | 5.1 | ||
280 | 600 | 594 | 77 | 5.6 | ||||
300 | 588 | 624 | 77 | 5.9 | ||||
7 | 250 | 735 | 676.2 | 800 | 74 | 5.1 | ||
280 | 700 | 693 | 77 | 5.6 | ||||
300 | 686 | 728 | 77 | 5.9 | ||||
8 | 250 | 840 | 772.8 | 1000 | 74 | 5.1 | ||
280 | 800 | 792 | 77 | 5.6 | ||||
300 | 784 | 832 | 77 | 5.9 | ||||
9 | 250 | 945 | 869.4 | 1120 | 74 | 5.1 | ||
280 | 900 | 891 | 77 | 5.6 | ||||
300 | 882 | 936 | 77 | 5.9 | ||||
10 | 250 | 1050 | 966 | 1250 | 74 | 5.1 | ||
280 | 1000 | 990 | 77 | 5.6 | ||||
300 | 980 | 1040 | 77 | 5.9 |
適用于工業和城市給排水、高層建筑增壓供水,園林噴灌、消防增壓、遠距離送水、采暖、浴室等冷暖水循環增壓及設備配套等,尤其適用于小型鍋爐給水。
D型水泵為多級分段式,其吸入口位于進水段上,成水平方向,吐出口在出水段上垂直向上,其揚程可根據使用需要而增減水泵級數。水泵裝配良好與否,對性能影響關系很大,尤其是各個葉輪的口出與導翼的進出中心,其中稍有偏差即將使水泵的流量減少,揚程降低效率差,故在檢修后裝配時務必注意。 D型水泵的主要零件有:進水段、中段、出水段、葉輪、導翼擋板、出水段導翼、軸、密封環、平衝盤、軸套、尾蓋及軸承體。 進水段、中段、導葉擋板、出水段導翼、出水段及尾蓋均為銹鐵制成,共同形成泵的工作室。 葉輪為優質銹鐵制成,內有葉片,液體沿軸向單側進入,由于葉輪前后受壓不等,必然存在軸向力,此軸向力由平衝盤來承擔,葉輪制造時經靜平衡試驗。 軸為優質炭素鋼制成,中間裝有葉輪,用鍵、軸套及軸套螺母固定在軸上。軸的一端裝聯軸器部件,與電 機直接連接。 密封環為銹鐵制成,防止水泵高壓水漏回進水部分,分別固定在進水段與中段之上,為易損件,磨損后可用備件更換。 平衡環為鑄鐵制成,固定在出水段上,它與平衡盤共同組成平衝裝置。 平衡盤為耐磨銹鐵制成,裝在軸上,位于出水段與尾蓋之間,平衡軸向力。 軸套為銹鐵制成,位于填料室處,作固定葉輪和保護泵軸入用,為易損件,磨損后可用備件更換。 軸承是單列向心球軸承,采用鈣基潤滑脂潤滑。填料起密封作用,防止空氣進入和大量液體漏出,填料密封由進水段和尾蓋上的填料室,填料壓蓋,填料環及填料等組成,少量高壓水流入填料室中起水封作用。填料的松緊程度必須適當,不可太緊亦不可太松,以液體能一滴一滴的滲出為準。如果填料太緊,軸套容易發熱,同時耗費功率。填料太松,由于液體流失要降低水泵的效率。
上一條: GC型臥式多級離心泵
下一條: TSWA型臥式多級離心泵
